Solar Eezy DIY Solar Pool Heating - 9m Roof Kits
A Solar Eezy 9-meter Roof Kit contains all of the components for a DIY solar roof-top collector installation on a 6m long roof space (excluding the roof mounting hardware (EzyClips or EzyTies) which is specific to your roof type)
9-meter roof kits are available in six models to match various pool sizes, as follows:

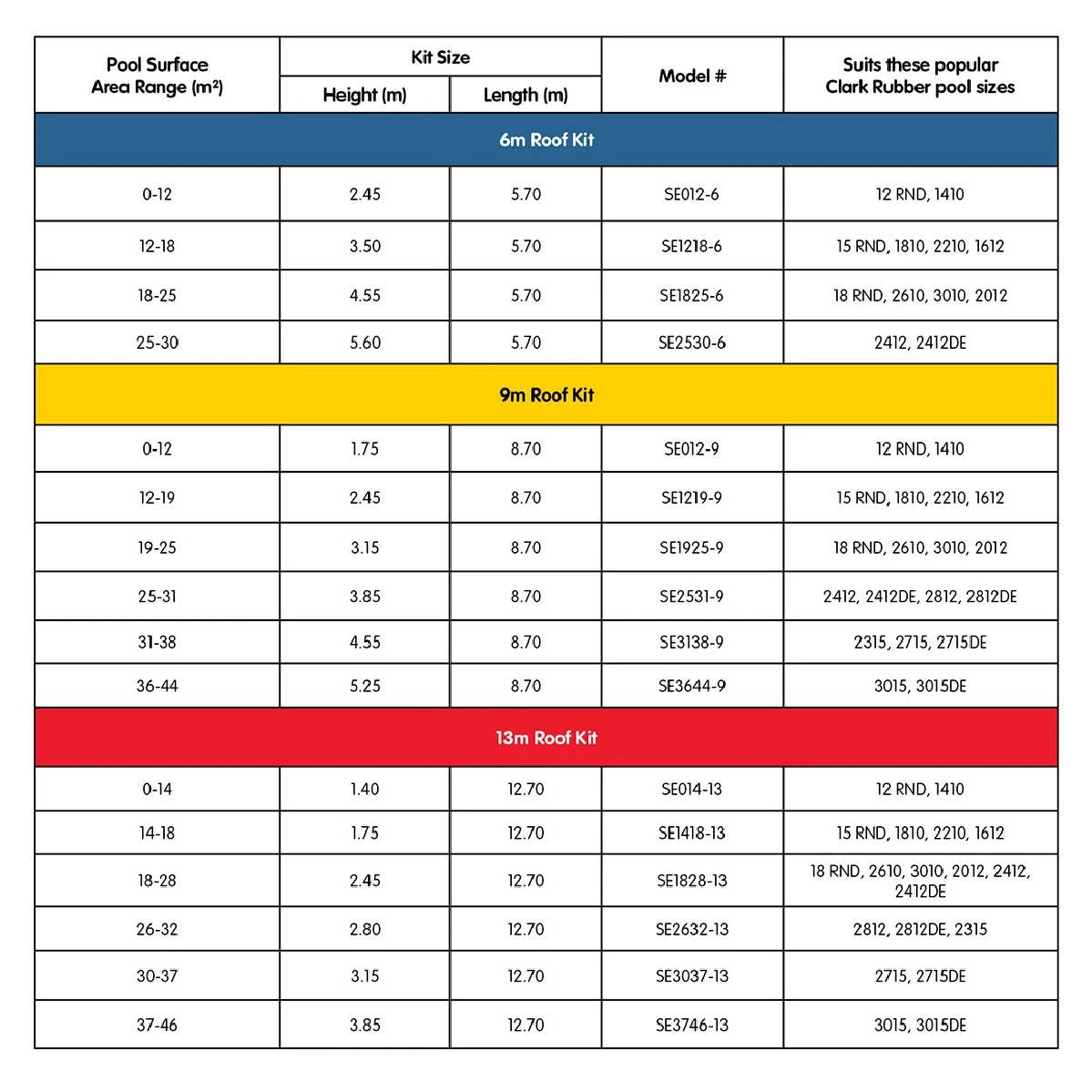

After using our model selection chart, review the model specifications below to ensure it matches your roof space and pool size. To purchase, select the model from the drop down options list.
Deciphering the model number The first four numbers in the model number relate to the pool surface area range that the roof top kit can service. The last number refers to the roof space length that the kit is designed for. For example, an SE1219-9, has a range of 12m2 to 19m2 and suits a 9 meter roof space
MODEL OPTIONS
SE012-9 Roof Collector kit:
• Suits pools with a surface area up to 12 meters-squared (m²)
• Total system dimensions = 1.75m H x 8.7m wide
• Surface Area of active collector = 10.2m²
SE1219-9 Roof Collector kit:
• Suits pools with a surface area between 12 and 19 meters-squared (m²)
• Total system dimensions = 2.45m H x 8.7m wide
• Surface Area of active collector = 15.3m²
SE1925-9 Roof Collector kit:
• Suits pools with a surface area between 19 and 25 meters-squared (m²)
• Total system dimensions = 3.15m H x 8.7m wide
• Surface Area of active collector = 20.4m²
SE2531-9 Roof Collector kit:
• Suits pools with a surface area between 25 and 31 meters-squared (m²)
• Total system dimensions = 3.85m H x 8.7m wide
• Surface Area of active collector = 25.5m²
SE3138-9 Roof Collector kit:
• Suits pools with a surface area between 31 and 38 meters-squared (m²)
• Total system dimensions = 4.55m H x 8.7m wide
• Surface Area of active collector = 30.6m²
SE3644-9 Roof Collector kit:
• Suits pools with a surface area between 36 and 44 meters-squared (m²)
• Total system dimensions = 5.25m H x 8.7m wide
• Surface Area of active collector = 35.7m²

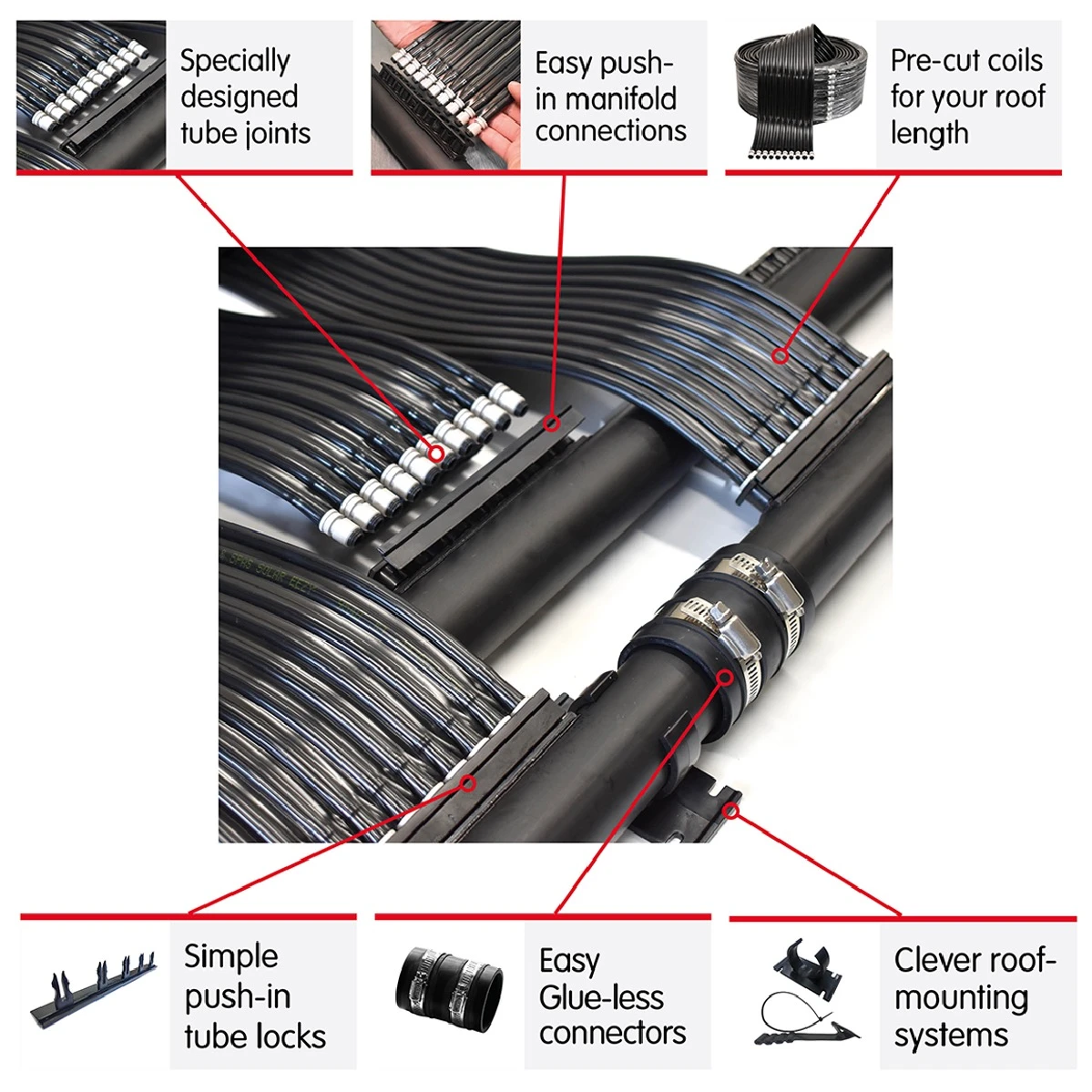

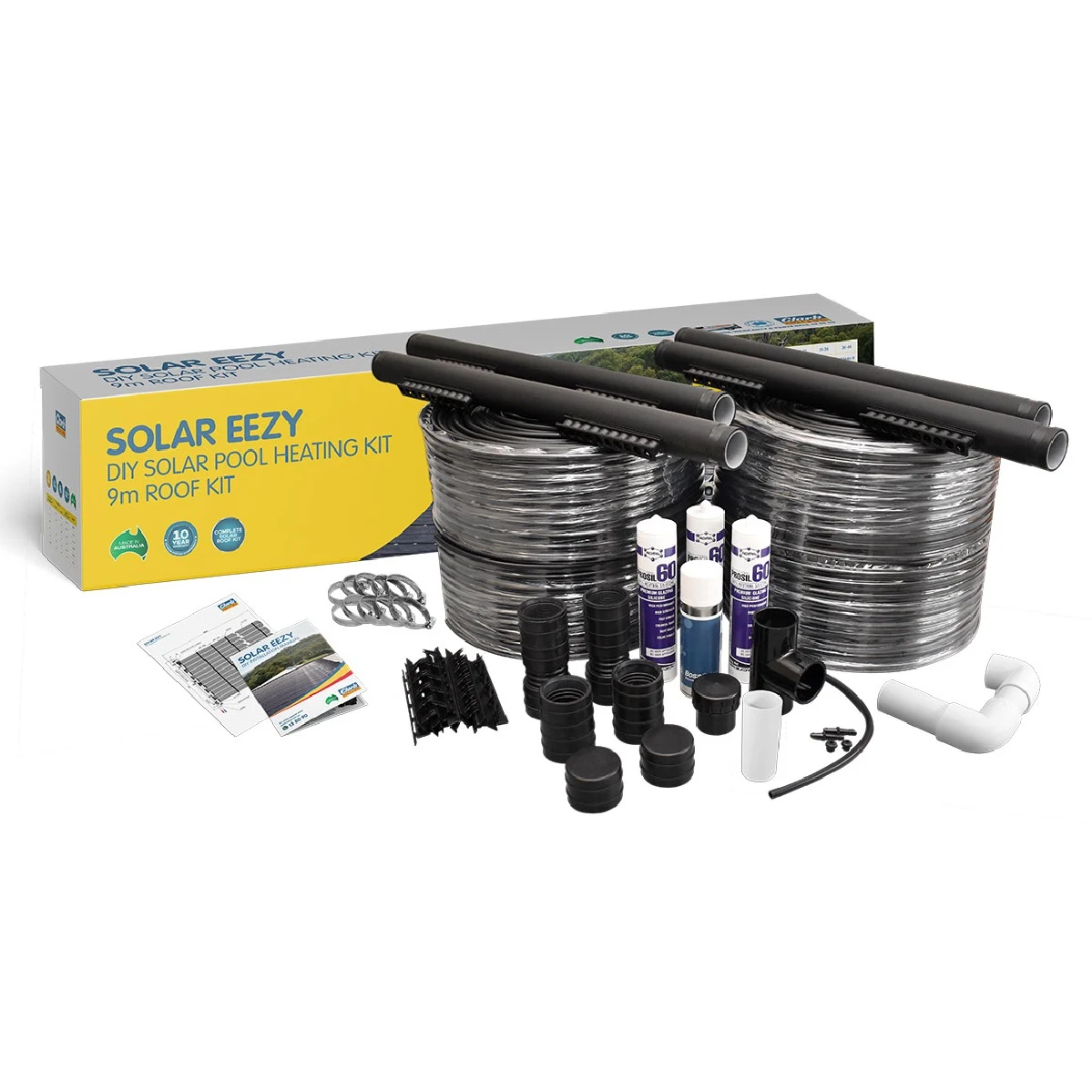

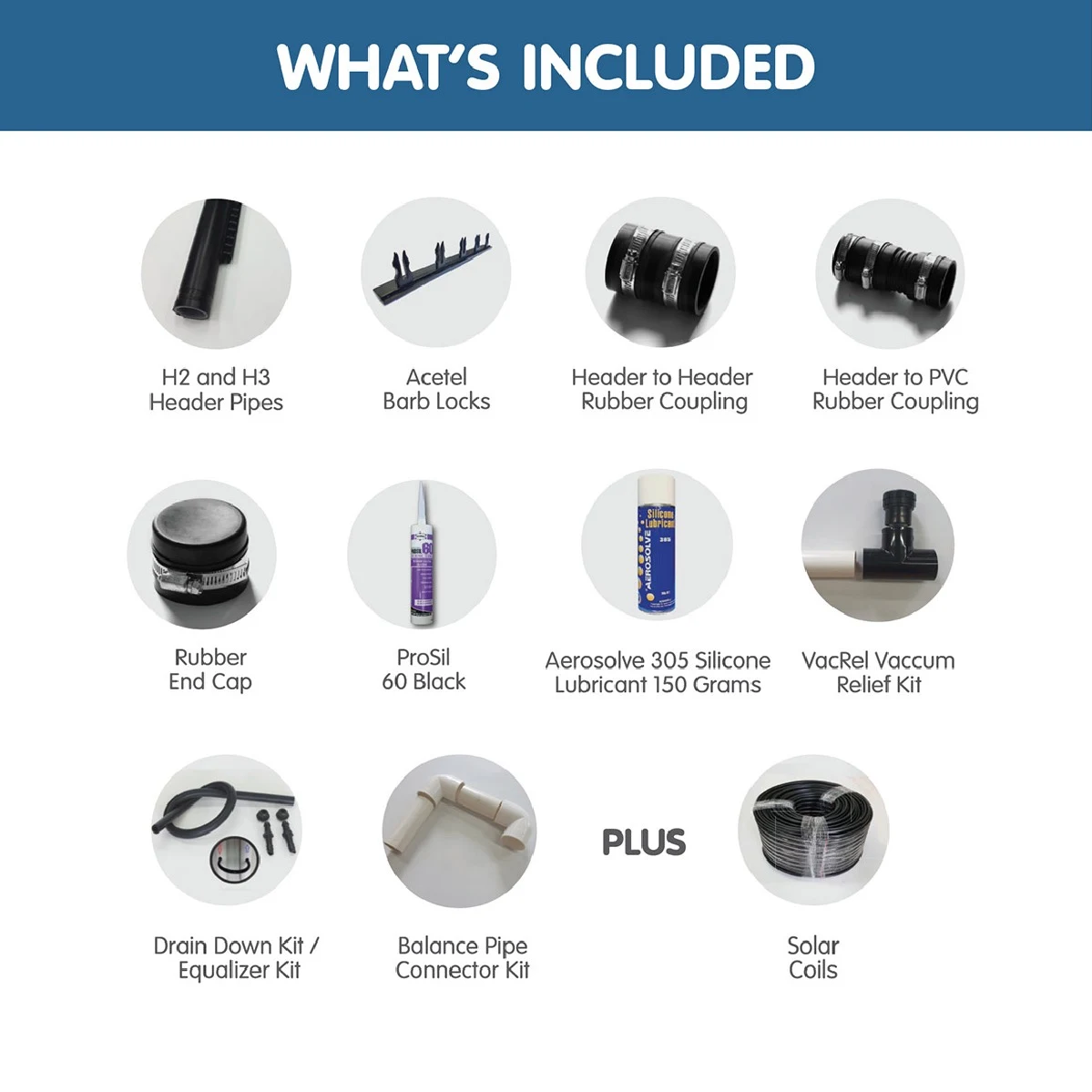

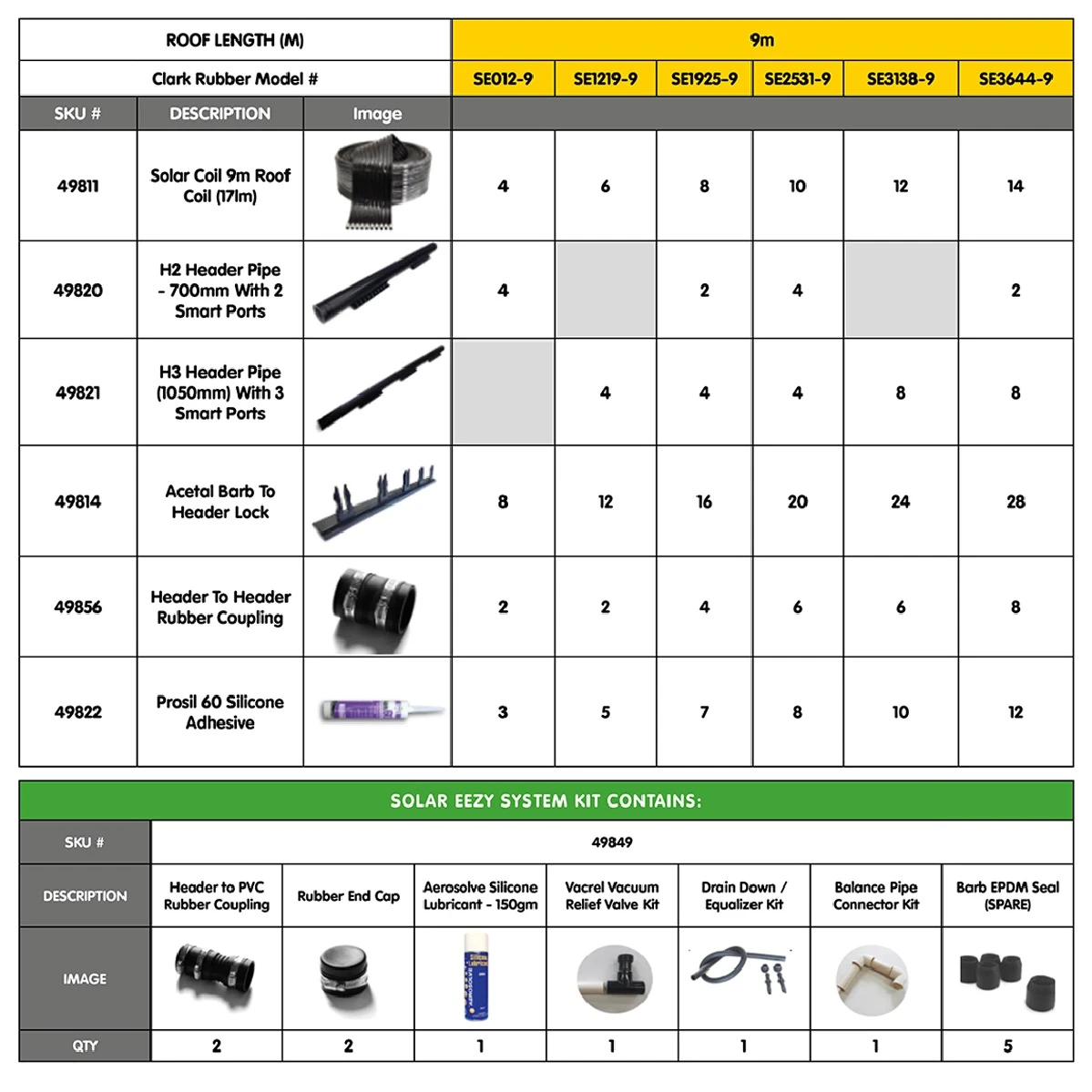

Each Roof Kit contains the following:
- Solar collector coils to suit a 9-meter roof space
- 700mm and/or 1050mm Header Pipes
- Acetal Tube Barb Locks
- Header-to-Header Rubber Coupling
- Header-to-PVC Pipe Rubber Coupling
- Rubber End Caps
- VacRel Vacuum Relief Valve
- Drain Down Equaliser kit
- Balance Pipe
- Prosil 60 Black Adhesive
- Aerosolve 305 Silicone Lubricant
Also required for installation / Sold Separately:
To fit this roof kit to your particular roof, you will also need one of the following roof mounting kits:
• SKU# 49529 - Solar DIY EzyTies for a Tiled Roof (Click to view)
• SKU# 49530 - Solar DIY EzyClips for a Tin / Metal Roof – 6 Pack (BLACK) (Click to view)

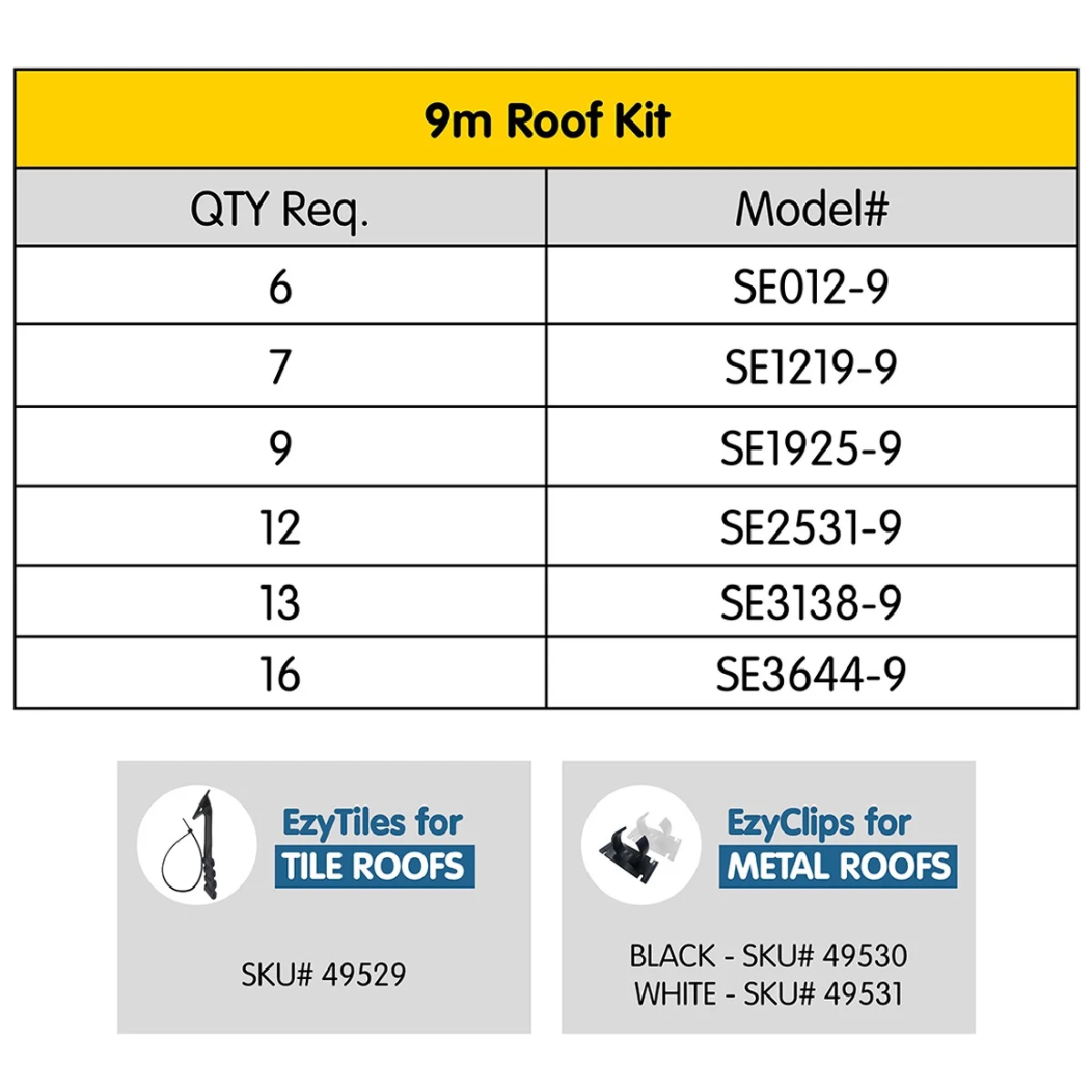

Use the Mounting Hardware table in the image library to determine how many 6-packs of roof clips / ties you will need for your kit selection.
CAUTION: Installing a roof top solar heating system can be dangerous. Clark Rubber recommends that all due precautions be taken for your safety when working from heights. Roofer’s Kits are available for hire from all good equipment hire specialists.
CLICK HERE TO VIEW THE RANGE OF INSTALLATION VIDEOS
